| Tempat asal: | Anhui, Tiongkok |
|---|---|
| Nama merek: | JP SENSOR |
| Sertifikasi: | ISO9001, RoHS |
| Nomor model: | MF5A-3 |
| Kuantitas min Order: | 5000 Potongan |
| Harga: | Negotiable |

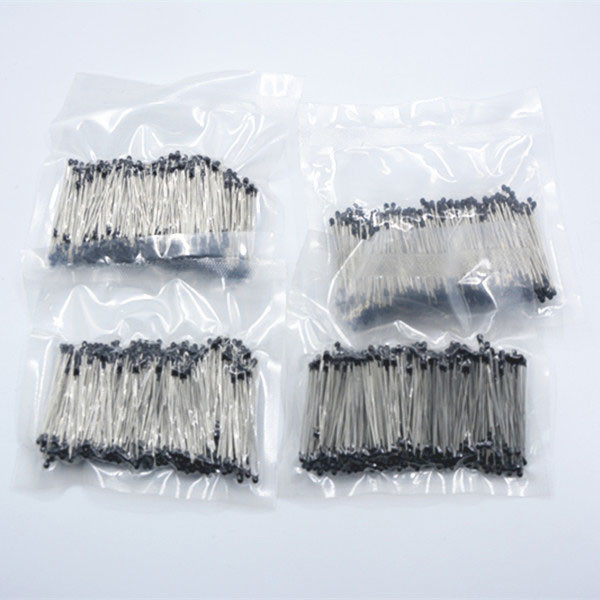

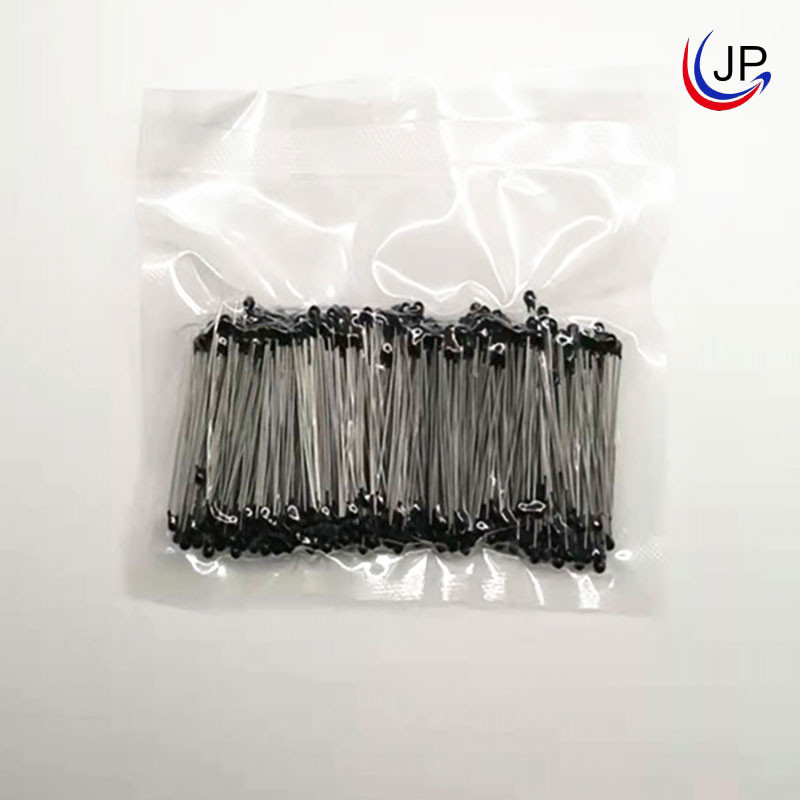

| Kemasan rincian: | Kemasan karton |
| Waktu pengiriman: | 2 minggu |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union |
| Menyediakan kemampuan: | 200 Juta per Tahun |
| Perlawanan: | 2.252KΩ | R25: | 50rb |
|---|---|---|---|
| B25/50: | 3950K | Kustomisasi: | Tersedia |
| chip: | Chip Termal NTC | Enkapsulasi: | Resin epoksi dienkapsulasi |
| Kabel: | Kabel CP | ||
| Cahaya Tinggi: | Epoxy Resin Dilapisi ntc 50 ohm,3950k ntc 50 ohm,sensor probe ntc R25 |
||

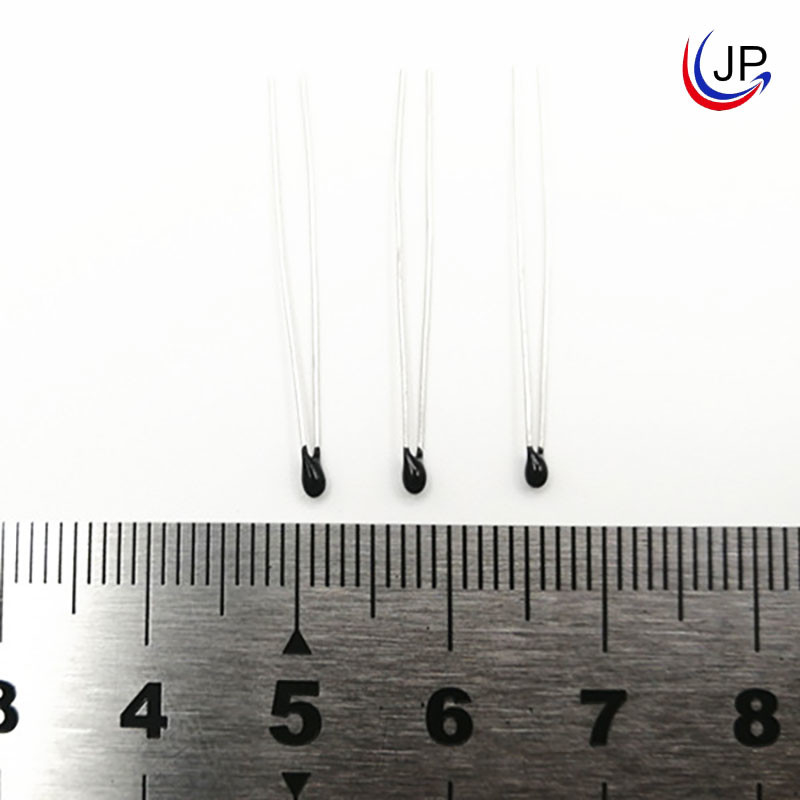

3950k Epoxy Resin Dilapisi R25 50KOhm NTC Termistor
Fitur:
R25℃=50kΩ(±1%,±2%,±3%,±5%)
B25/50=3950k(±1%,±2%,±3%,±5%)
Aplikasi:
Peralatan medis
Struktur dan Dimensi:( satuan: mm)
Spesifikasi Listrik:
| Rek.pada 25℃(kΩ)+A2:G25+A2:G25 | Nilai beta | (Di udara Pmax (mW) | (mW/℃) | konstanta waktu hermal (detik) | Rentang Suhu Operasi TL-TH(℃) | Panjang total L(mm) |
| 1 | B25/85=3435 | Sekitar 60 | Maks.3.0 | Maks.20 | -40℃~125 | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50 = 3950 | |||||
| 5 | B25/50 = 3470 | |||||
| 5 | B25/50 = 3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50 = 3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50 = 3950 | |||||
| 20 | B25/50 = 3950 | |||||
| 47 | B25/50 = 3950 | |||||
| 50 | B25/50 = 3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
