| Tempat asal: | Anhui, Tiongkok |
|---|---|
| Nama merek: | JP SENSOR |
| Sertifikasi: | ISO9001, RoHS |
| Nomor model: | MF5A-3 |
| Kuantitas min Order: | 5000 Potongan |
| Harga: | Negotiable |
| Kemasan rincian: | Kemasan karton |
| Waktu pengiriman: | 2 minggu |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union |
| Menyediakan kemampuan: | 200 Juta per Tahun |
| Perlawanan: | 10KΩ | R25: | 10KΩ |
|---|---|---|---|
| B25/85: | 3435k | Kustomisasi: | Mendukung |
| chip: | Termistor NTC | Enkapsulasi: | Enkapsulasi resin epoksi |
| Kabel: | CP | Layanan purna jual: | Kualitas asuransi |
| Jaminan: | 2 tahun | ||
| Cahaya Tinggi: | Termistor Epoksi 3435k,Termistor Epoksi 10K,sensor suhu termistor R25 |
||

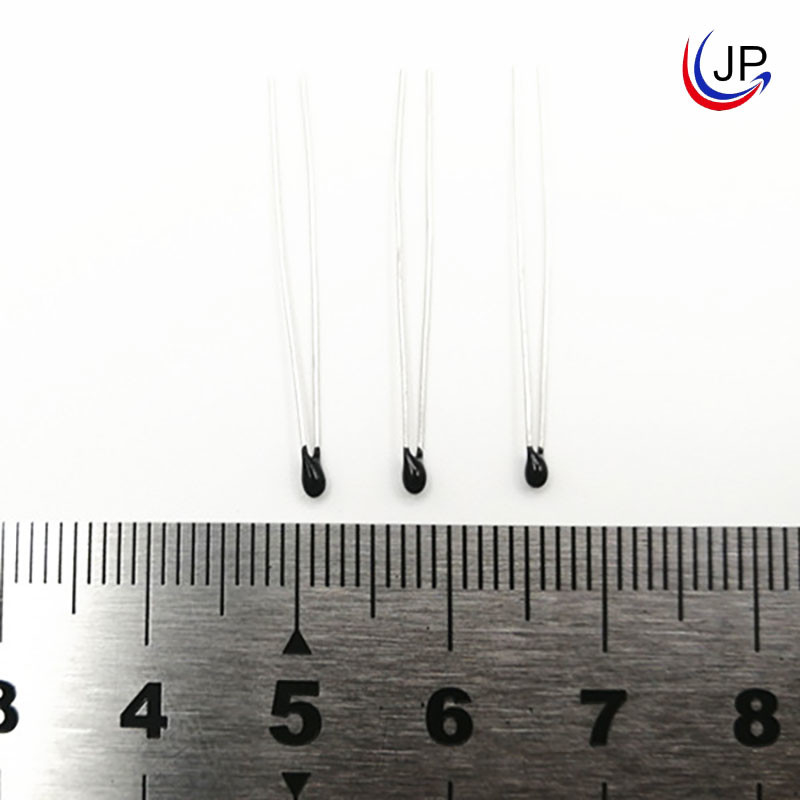

Sensor Suhu Termistor Epoksi B25/85 R25 10K 3435k
Fitur:
R25℃=10kΩ(±1%,±2%,±3%,±5%)
B25/85=3435k(±1%,±2%,±3%,±5%)
Aplikasi:
Peralatan medis
Struktur dan Dimensi:( satuan: mm)
Spesifikasi Listrik:
| Rek.pada 25℃(kΩ)+A2:G25+A2:G25 | Nilai beta | (Di udara) Pmax (mW) | (mW/℃) | Konstanta waktu termal (dtk.) | Rentang Suhu Operasi TL-TH(℃) | Panjang total L(mm) |
| 1 | B25/85=3435 | Sekitar 60 | Maks.3.0 | Maks.20 | -40℃~125 | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50 = 3950 | |||||
| 5 | B25/50 = 3470 | |||||
| 5 | B25/50 = 3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50 = 3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50 = 3950 | |||||
| 20 | B25/50 = 3950 | |||||
| 47 | B25/50 = 3950 | |||||
| 50 | B25/50 = 3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
